BIRD HIDE
Built: 2018
Location: Dartington, Totness, UK

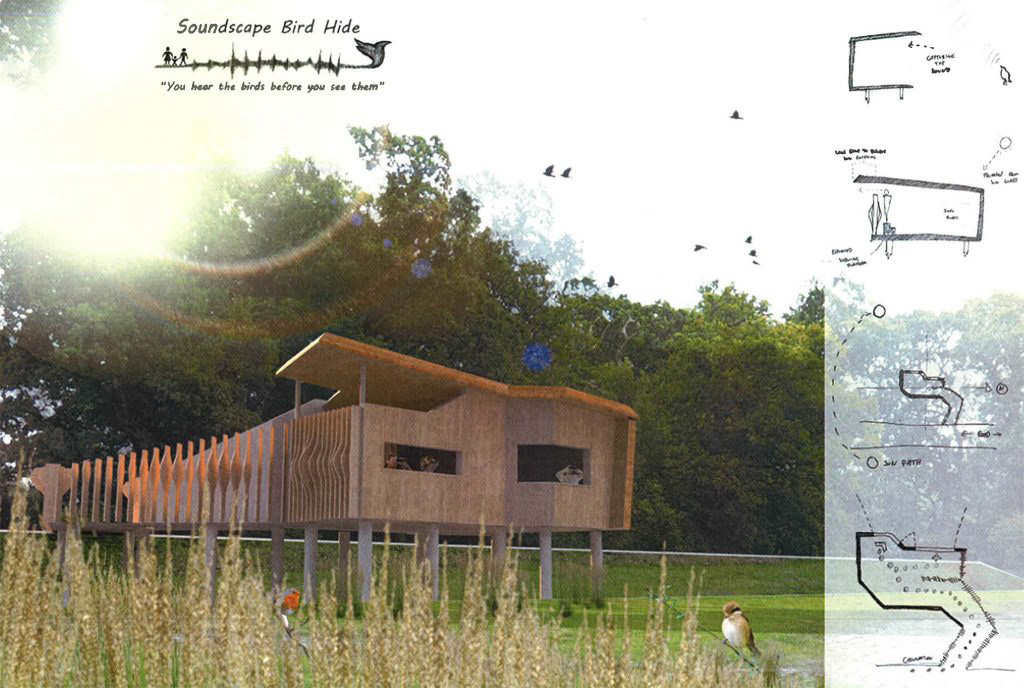

Rendered Proposition
Completed
Bird Hide after Rainy season
BIRD HIDE COMPLETED
The following images compare the rendered proposition to the completed project
Prefabrication of the Fins

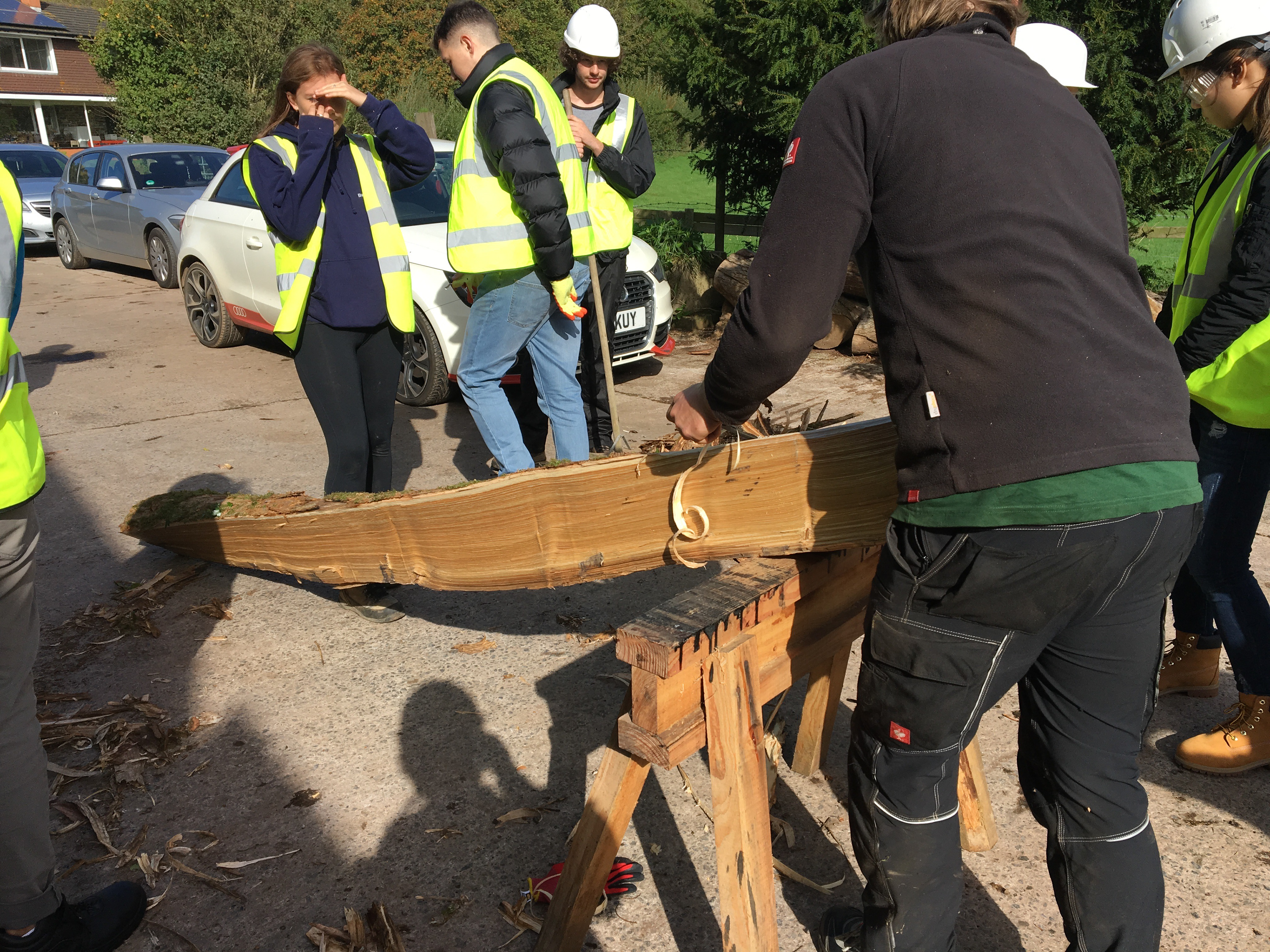

Shaving the timber stalks to be used for the foundation

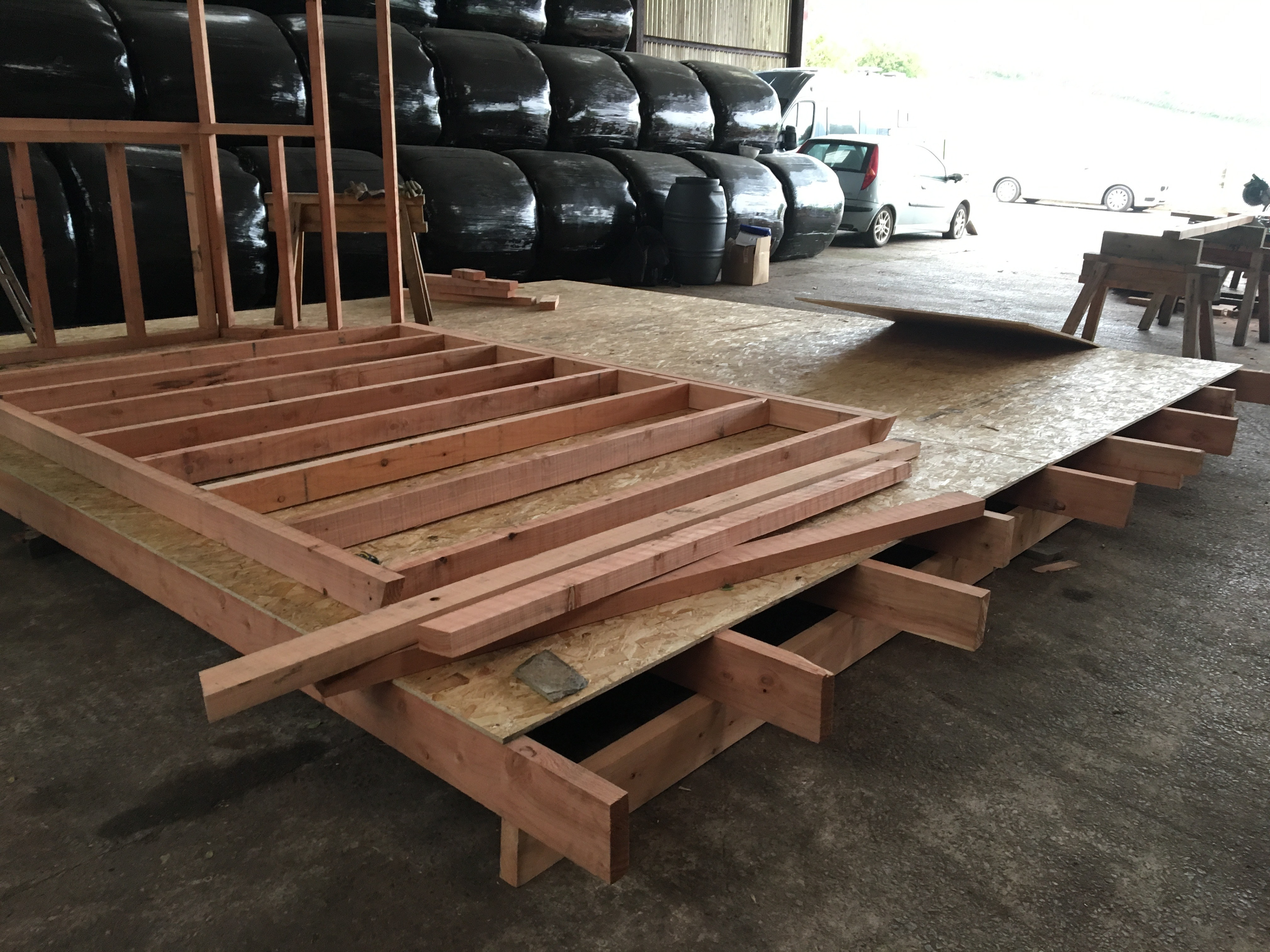

Assembly of the Frame

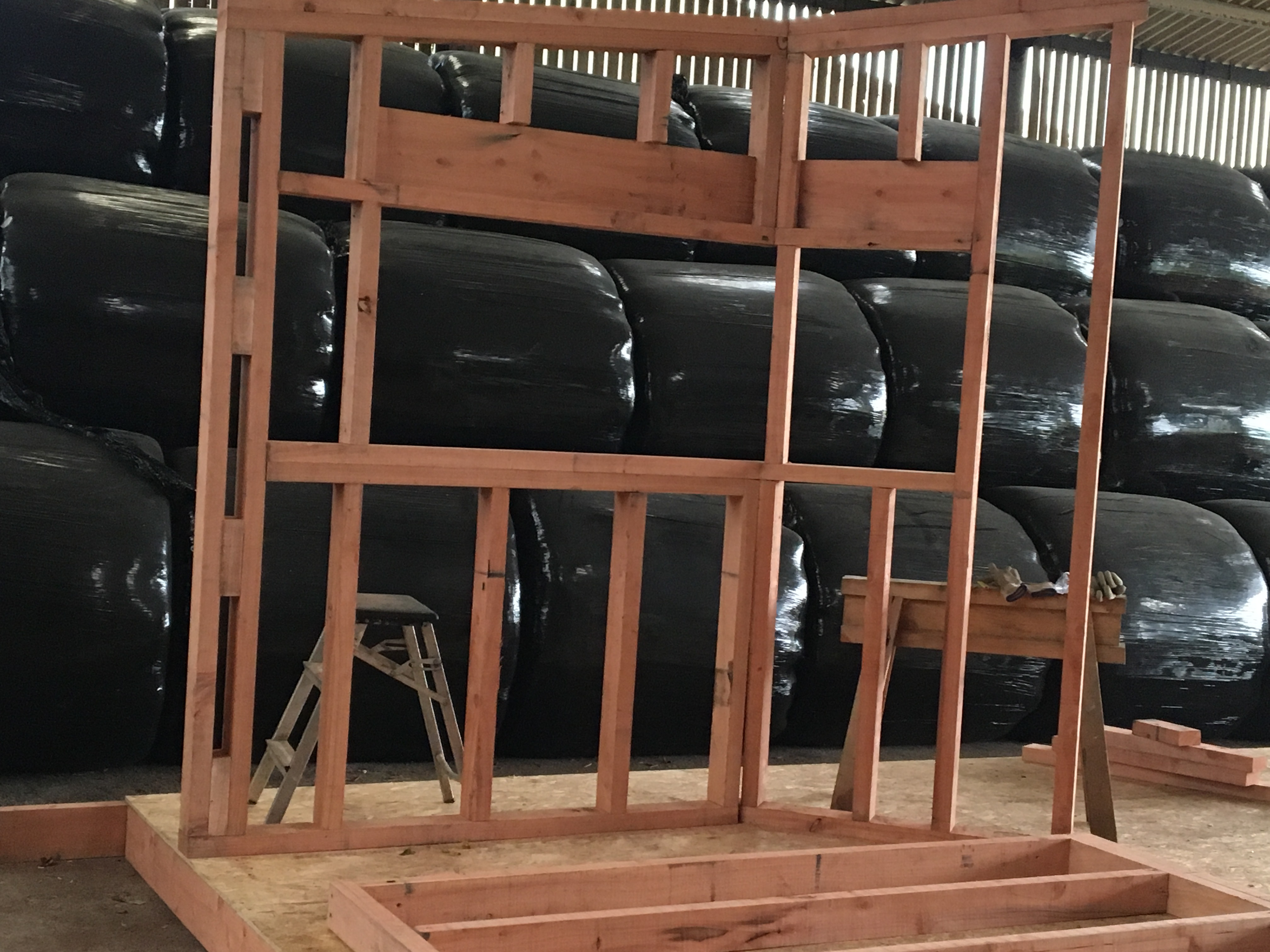

Frame Complete
Measuring the OSB board to the frame

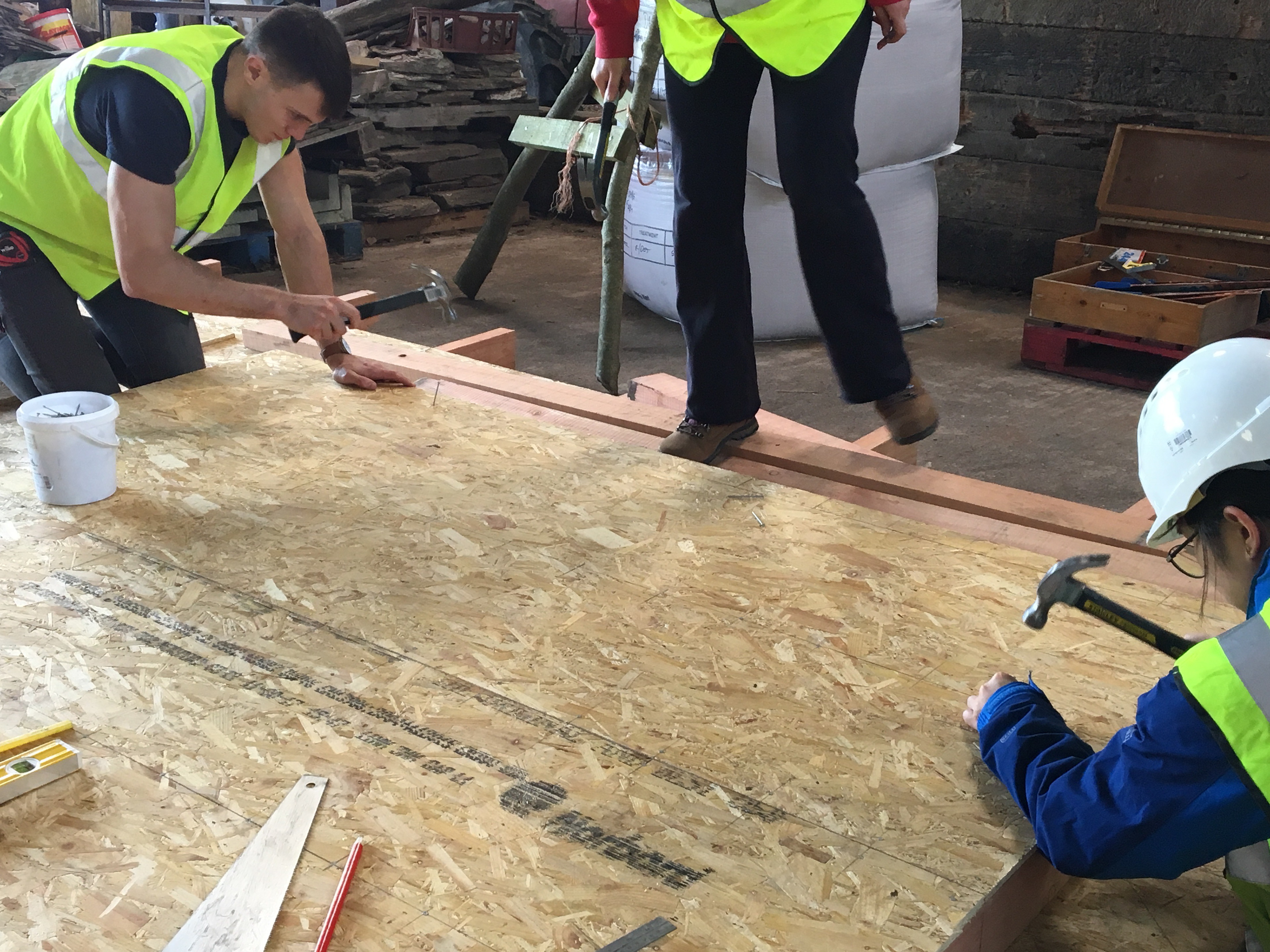

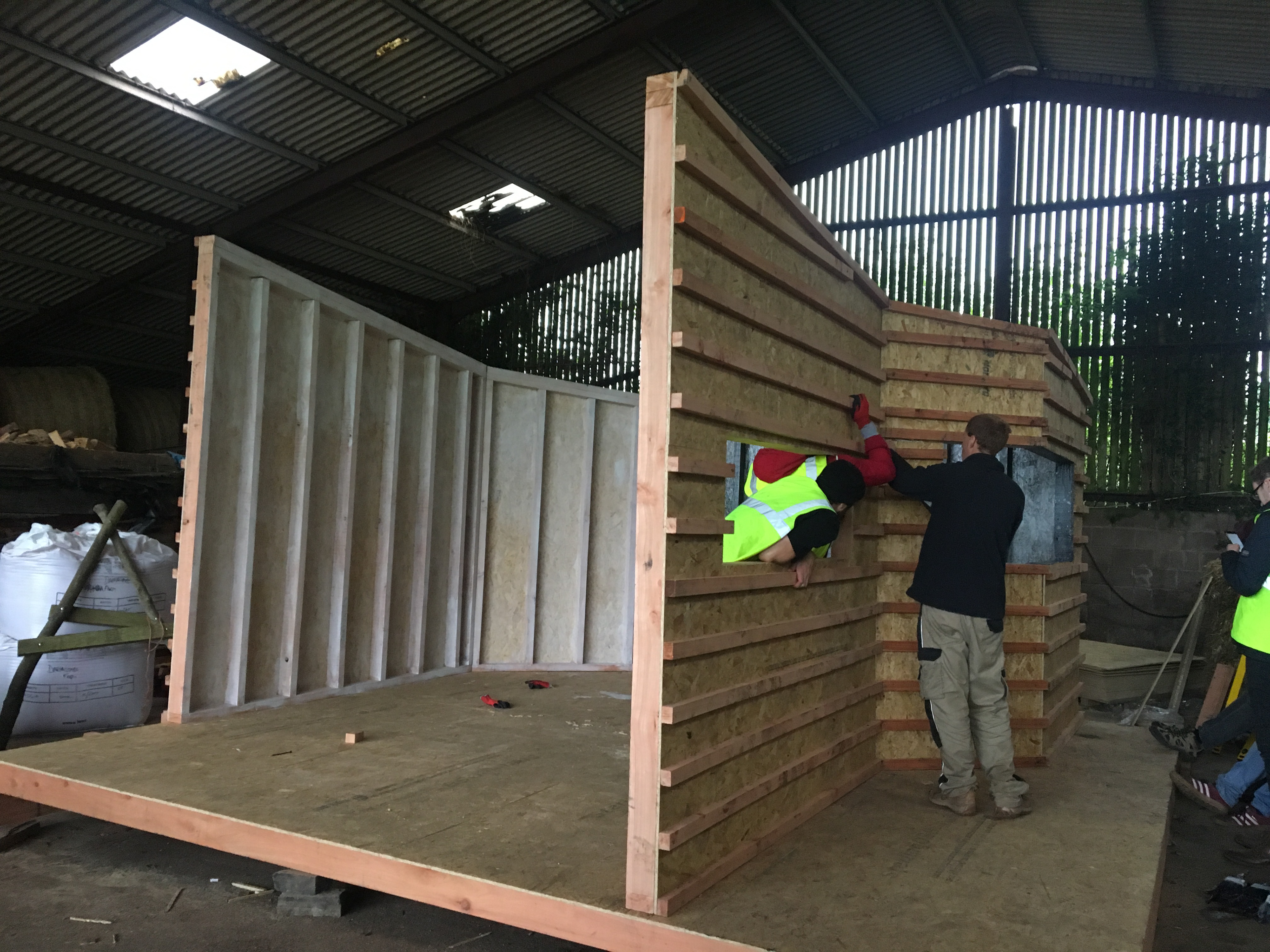

Attaching the OSB to the frame

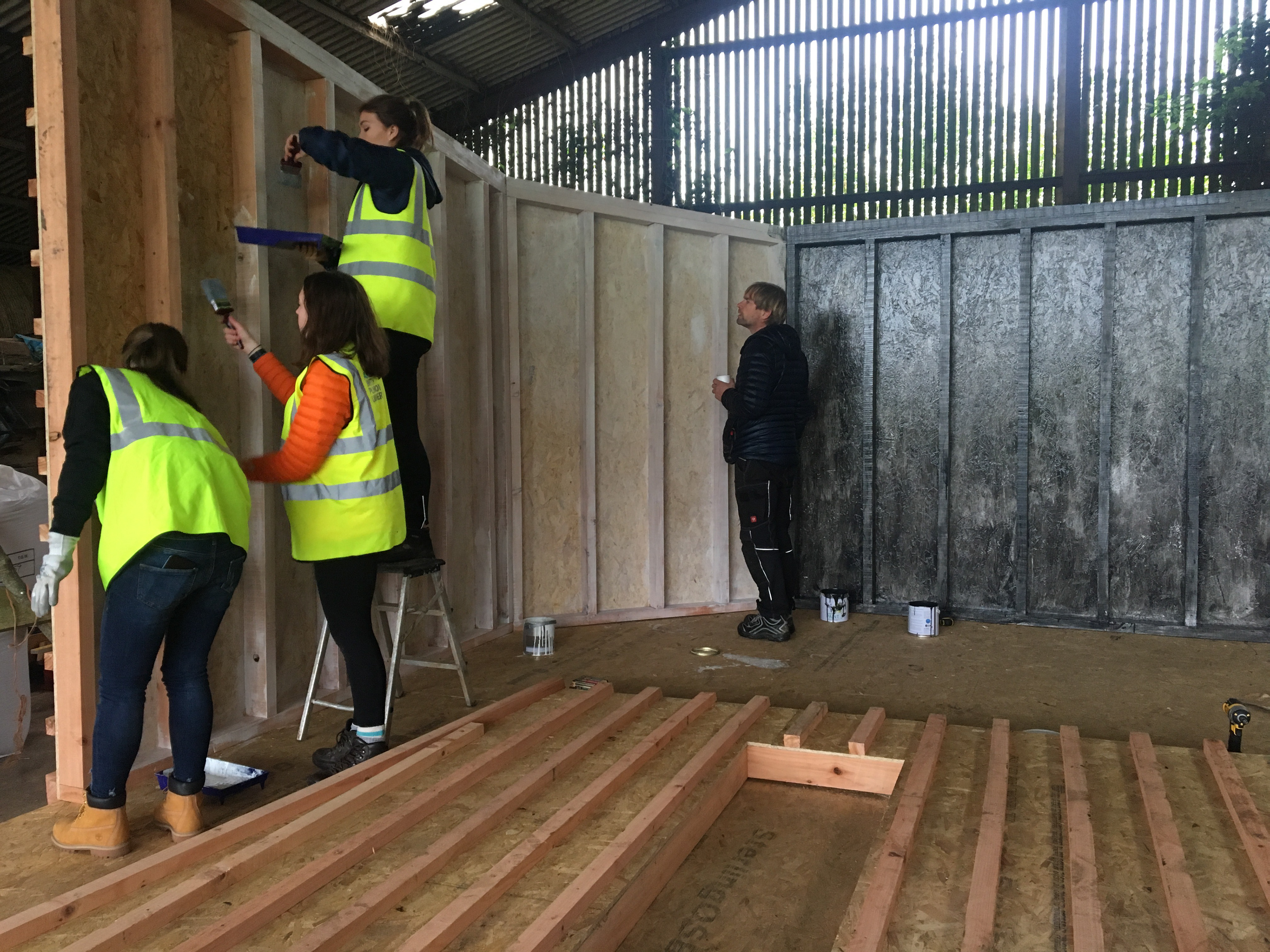

Applying Primmer before the black paint
Attaching the batons to the walls
CONSTRUCTION
The following images were of the construction process which entailed huge collaborative efforts and accuracy during the prefabrication phase.

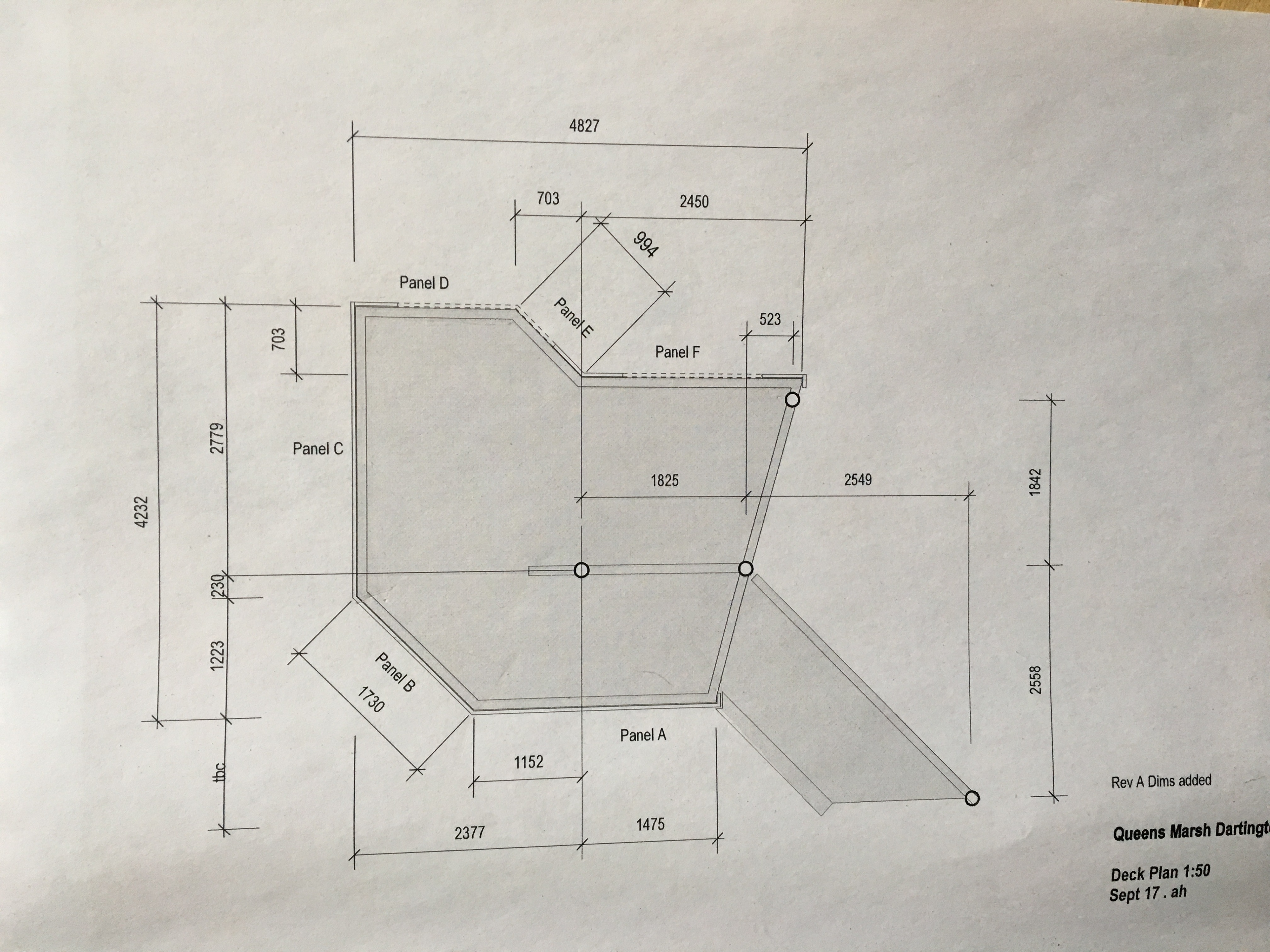

Decking Plan

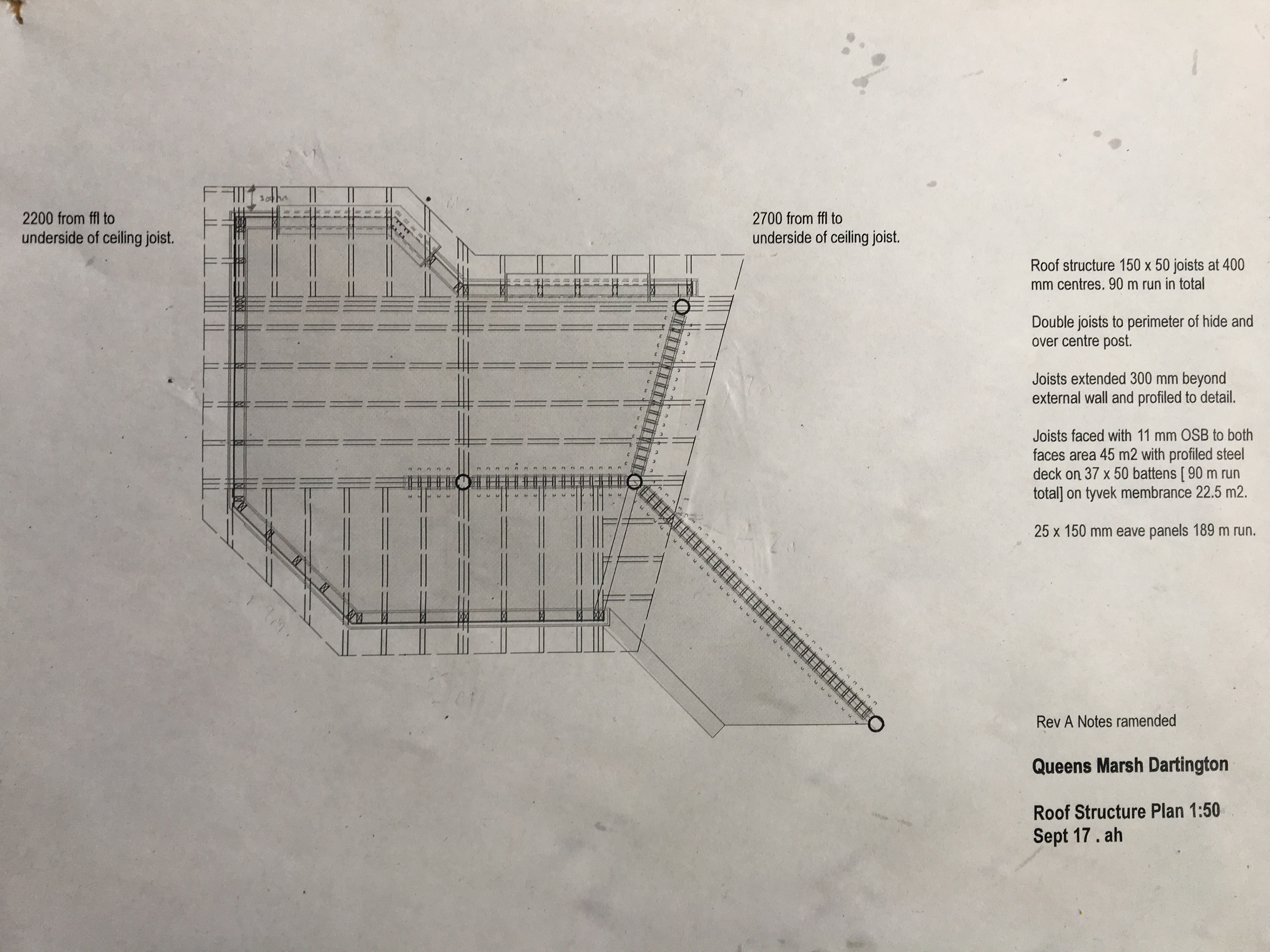

Roof Plan
Detailed explanation

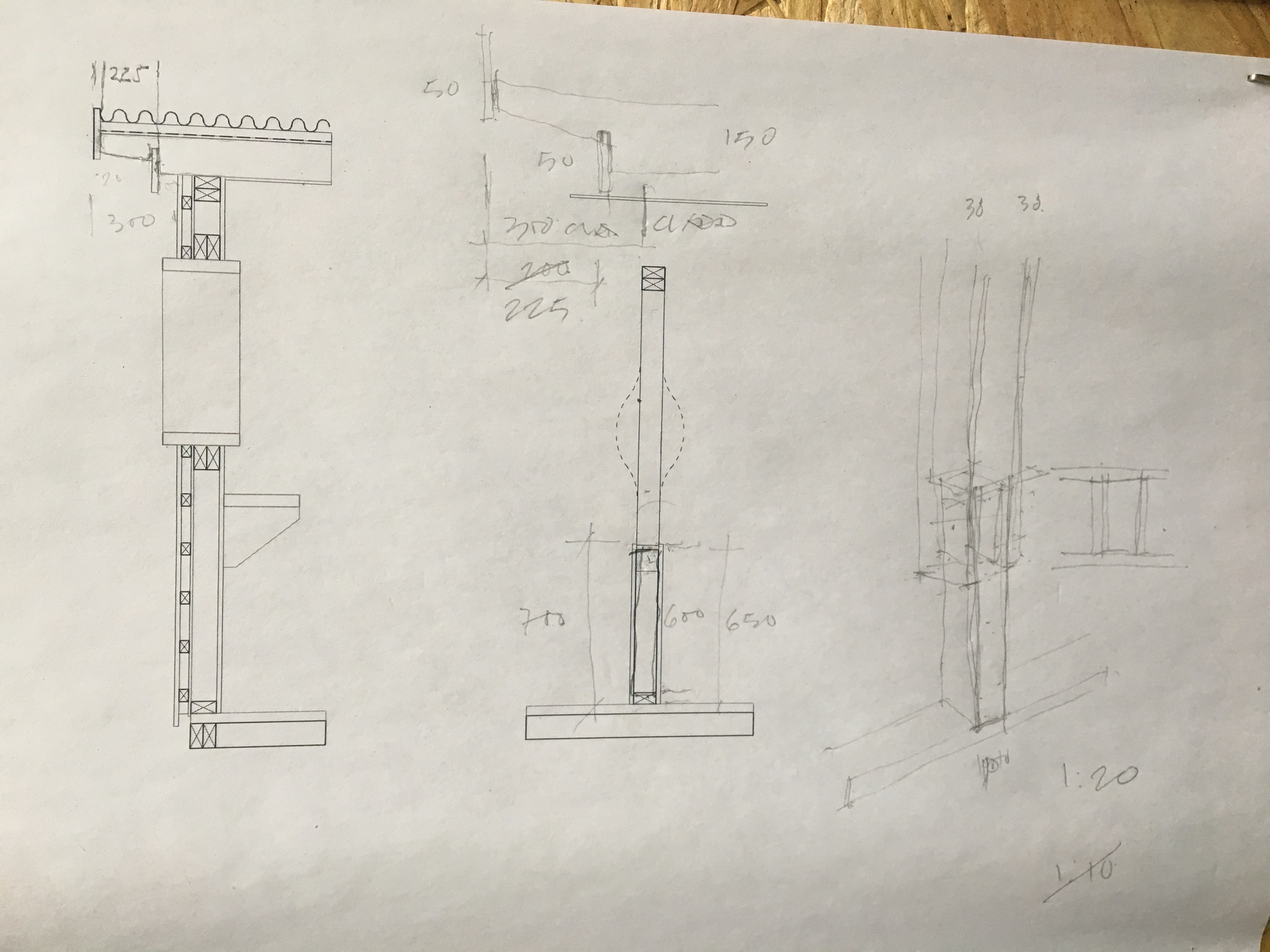

Fins section

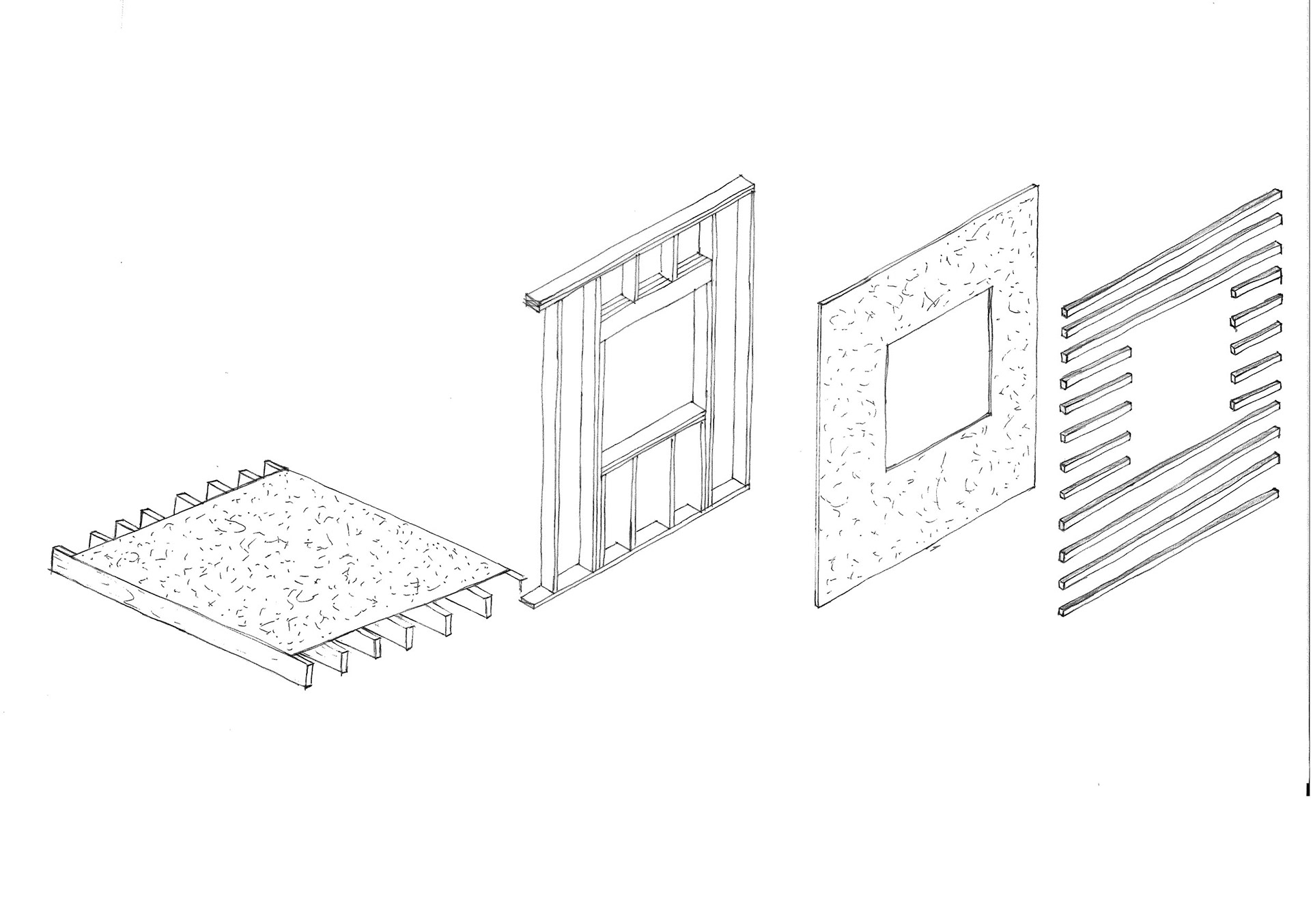

Drawing of Prefabricated walls

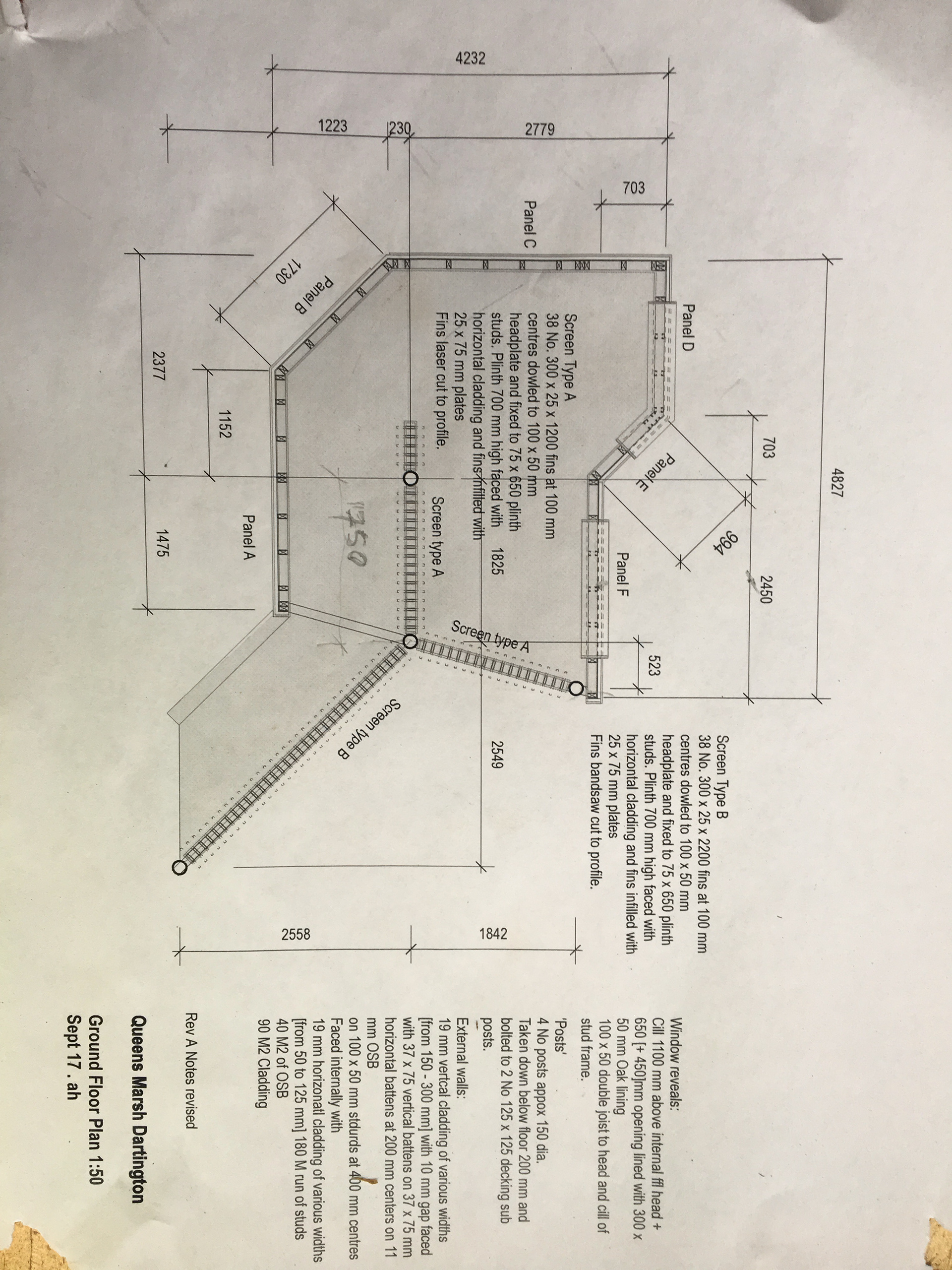

Site drawing
Site Drawings
DRAWINGS
The following drawings were the blu prints used on site to construct the elements that were prefabricated.
